Wireless Wire Cube Pro

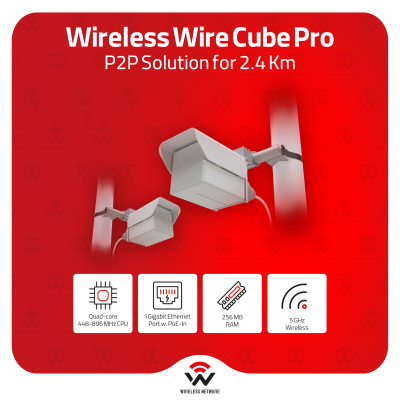

Wireless Wire Cube Pro: A preconfigured plug-and-play kit of two Cube 60Pro ac devices for ultra-fast 802.11ay 60 GHz point-to-point connections. Fiber-like speed and stability for distances up to 2.4 km, with 5 GHz automatic failover.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Fiber-Like Connectivity Without Cables
The Wireless Wire Cube Pro is a preconfigured kit featuring two Cube 60Pro ac devices that instantly create an encrypted 60 GHz wireless link. Designed for those seeking fiber-like speed and stability, this solution is perfect for replacing physical cables in diverse applications such as business networks, industrial setups, and rural connectivity.
Key Features
-
Ultra-Fast Long-Distance Connection
- Delivers fiber-like speeds with 802.11ay 60 GHz technology.
- Supports distances of 1 km, with tests achieving 2.4 km using Channel 5.
-
Automatic Failover for Maximum Reliability
- Equipped with a 5 GHz backup connection for uninterrupted performance, even during challenging weather conditions.
-
Plug-and-Play Installation
- Preconfigured devices automatically connect—just point them at one another and power them on.
-
Compact, Durable Design
- Features a strong metal base for enhanced durability, better cooling, and easier mounting.
-
High Performance in Crowded Environments
- Operates on the 60 GHz band, unaffected by the crowded wireless spectrum, ensuring smooth and fast connections.
-
Encrypted and Secure
- Offers AES encryption for a secure connection.
Use Cases
- Connecting buildings in corporate campuses or industrial parks.
- Providing reliable high-speed internet to rural or remote locations.
- Replacing fiber connections for temporary or event setups.
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 22 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 22 | -93 |
| MCS7 | 17 | -71 |
| MCS9 | 15 | -68 |
- Product code
- CubeG-5ac60aypair
- Architecture
- ARM 32bit
- CPU
- IPQ-4019
- CPU core count
- 4
- CPU nominal frequency
- auto (448 - 896) MHz
- RouterOS License
- RouterOS L4
- Size of RAM
- 256 MB
- Storage size
- 64 MB
- Storage type
- FLASH
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 10 W
- Cooling type
- Passive
- PoE in
- 802.3af/at
- PoE in input Voltage
- 18-48 V
- GNSS standards
- GPS
- 10/100/1000 Ethernet ports
- 1
- Wireless 5 GHz number of chains
- 1
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 11.5
- Wireless 5 GHz chip model
- IPQ-4019
- Frequency
- 47-63
- Wireless 5 GHz Max data rate
- 433 Mbit/s
- Wireless 5 GHz generation
- WiFi 5
- Certification
- CE, FCC, IC, EAC, ROHS
