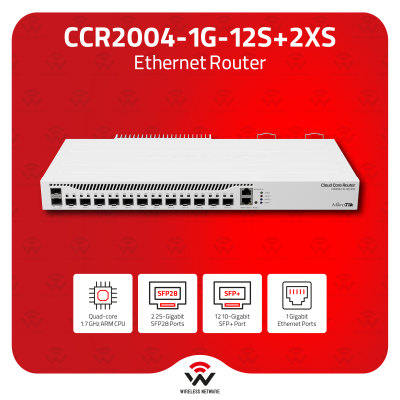

MikroTik CCR2004-1G-12S+2XS 12×SFP+ 2×25G Router
The MikroTik CCR2004-1G-12S+2XS is a 1U rackmount cloud core router — AL32400 quad-core ARM64 at 1,700 MHz, 4 GB ECC RAM, 128 MB NAND flash, RouterOS v7 License 6, 1× GbE + 12× SFP+ 10G + 2× SFP28 25G, RJ45 serial console, dual redundant AC input (100–240V, 2× IEC cords), 60W max / 31W without attachments, 2 fans, IP20, 443 × 224 × 44 mm, -20°C to +60°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Highest single-core performance in the CCR2004 family — up to 3.4 Gbps single IPsec tunnel, strong BGP feed processing. Includes 2× IEC cords, K10 screw and feet kit, rackmount bracket. Free software updates for life of product or minimum 5 years from purchase.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CCR2004-1G-12S+2XS is a 1U rackmount cloud core router built for multi-speed fiber environments — 1× GbE, 12× SFP+ 10G, and 2× SFP28 25G on a single quad-core ARM64 platform with 4 GB ECC RAM and dual redundant AC power.
**Highest single-core performance in the CCR2004 family — 3.4 Gbps single IPsec tunnel**
AL32400 quad-core ARM64 at 1,700 MHz with 4 GB ECC RAM delivers MikroTik's highest single-core performance in this generation — up to 3.4 Gbps on a single IPsec tunnel and strong BGP feed processing performance on par with the CCR1009 and CCR1016 series. ECC RAM protects against silent data corruption in 24/7 routing environments.
**12× SFP+ 10G + 2× SFP28 25G — multi-speed fiber in one chassis**
12 SFP+ ports handle 1.25G SFP and 10G SFP+ modules. 2 SFP28 ports add 25G — enabling direct 25G uplinks to core switches such as the CRS317-1G-16S+RM, CRS312-4C+8XG-RM, and CRS326-24S+2Q+RM without a separate 25G breakout device. All three port speeds — 1G, 10G, 25G — in a single 1U chassis.
**Dual redundant AC power — no unexpected downtime**
Two independent 100–240V AC inputs with two IEC cords included — if one PSU fails the router remains online. Universal input voltage — compatible with North American 120V and international 230V mains without modification.
**RouterOS v7 License 6 — full feature set**
License 6: unlimited tunnels, unlimited routing table size, BGP, OSPF, MPLS, VRF, full firewall, scripting. Free software updates for the life of the product or a minimum of 5 years from date of purchase.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC. Wired router, no wireless transmitter — no ISED wireless type approval required.
- Product code
- CCR2004-1G-12S+2XS
- CPU core count
- 4
- CPU nominal frequency
- 17000 MHz
- Operating System
- RouterOS
- Size of RAM
- RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
- Storage size
- 128 MB, NAND
- Max Power consumption
- 49W
- Dimensions
- 443 x 224 x 44 mm
- Number of AC inputs
- 2
- Operating Temperature
- -20°C to +60°C tested
- Input Voltage
- AC power supply 100 - 240 V
- Certification
- CE/RED, EAC, ROHS
- RAM type
- DDR4
- Number of 10G SFP+ ports
- 12
- Number of 1G Ethernet ports
- 1
- Number of 25G SFP28 ports
- 2
