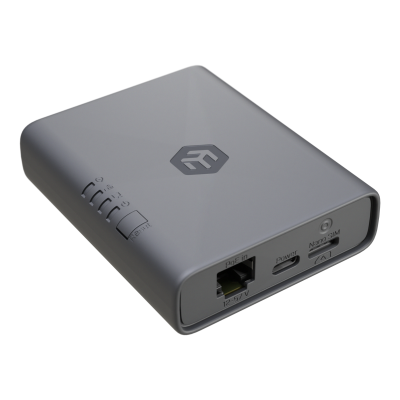

MikroTik KNOT Embedded LTE4 Global IoT Gateway EG25-G
The MikroTik KNOT Embedded LTE4 Global (EG25-G&KNe) is a compact industrial LTE Cat4 gateway with Bluetooth 5.4, GNSS/GPS, and Gigabit Ethernet in a DIN rail-mountable form factor. It features eSIM plus Nano SIM support with expanded global LTE band coverage including North American bands B12, B13, and B28, making it suited for IoT deployments, industrial automation, and asset tracking. Powered by RouterOS v7 and certified CE, FCC, IC, and EAC.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik KNOT Embedded LTE4 Global (EG25-G&KNe) is a rugged industrial IoT gateway built for deployments where space is limited but connectivity is critical. It delivers LTE Cat4 speeds — 150 Mbps downlink, 50 Mbps uplink — across a broad range of LTE FDD and TDD bands optimized for North America and international markets.
Key features:
- LTE Cat4, 2×2 MIMO DL — 150 Mbps downlink, 50 Mbps uplink
- LTE FDD bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
- LTE TDD bands: B38, B39, B40, B41
- 3G R8 fallback — 42.2 Mbps downlink, 5.76 Mbps uplink
- 2G Class12 fallback — bands B2, B3, B5, B8
- Bluetooth 5.4 — Long Range and Extended Advertising for BLE sensor integration
- GNSS/GPS with SMA connector for vehicle and asset tracking
- eSIM + Nano SIM — activate MikroTik Connectivity directly from your account
- 1× Gigabit Ethernet with PoE-in (802.3af/at, 12–57V) and USB-C (5V) dual power inputs
- Sensor-ready GPIO header — digital input, analog input, open-drain output, 24V tolerant
- DIN rail mountable via included K-91 fastening set
- ARM Cortex-A7, 800 MHz, 256 MB RAM, 256 MB NAND storage
- RouterOS v7, License Level 3 — free updates for life (minimum 5 years)
- Passive cooling, -40°C to +70°C, MTBF ~100,000 hours at 25°C
- Certified CE, FCC, IC, EAC, RoHS | IP20
In the box: 5V 0.8A power adapter, K-91 fastening set.
Note: The unit requires external antennas — choose models that match your deployment environment.
Ideal for: smart city infrastructure, coffee and vending machine monitoring, industrial automation cabinets, environmental and utility monitoring, vehicle and asset tracking, retail kiosks, payment terminals, LTE backup links, and BLE IoT gateways.
- Product code
- EG25-G&KNe
- CPU
- ARM 32-bit 800 MHz
- Operating System
- RouterOS v7, License level 3
- Size of RAM
- 256 MB
- Storage size
- 256 MB, NAND
- Number of DC inputs
- 2 (PoE-In, USB Type-C (powering only))
- Max Power consumption
- 6 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100MHz) / 2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 6 (850 MHz) / 8 (900MHz) / 19 (800 MHz)
- GNSS standards
- Galileo, GPS, Glonass, BDS, QZSS
- Dimensions
- 90 x 70 x 22 mm
- 2G Category
- Class12
- LTE Category
- 4 (150Mbps Downlink, 50Mbps Uplink)
- LTE FDD bands
- 1 (2100 MHz)/ 2 (1900MHz) / 3 (1800 MHz) / 4 (1700MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 12 (700MHz) / 13 (700 MHz) / 18 (800 MHz / 19 (800 MHz / 20 (800 MHz) / 25 (1900MHz) / 26 (850MHz) /28 (700MHz)
- LTE TDD bands
- 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 01673800
- Operating Temperature
- -40°C to +70°C
- RAM type
- DDR
- Number of 1G Ethernet ports
- 1
- 2G bands
- 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- Bluetooth version
- 5.1
- LTE modem
- EG25-G
- Power adapter nominal voltage
- 5 V
- Power adapter nominal current
- 0.8 A
- GNSS interface model
- EG25-G
- RF connector type
- SMA female
- USB Type-C input voltage
- 5 V
- SIM slots
- Nano SIM, eSIM
