EG25-GL Mini PCIe

Name: EG25-GL Mini PCIe
Brand: Quectel
SKU: EG25-GL
Price: 50 USD
Availability: InStock

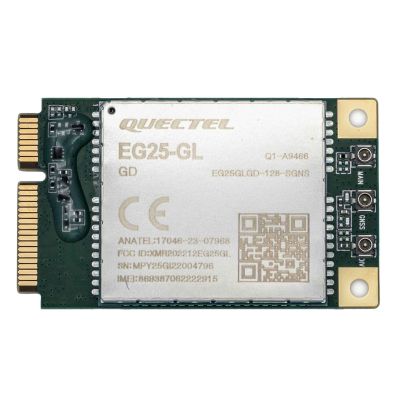

Quectel EG25-GL Mini PCIe LTE Cat 4 module delivers 150Mbps downlink, 50Mbps uplink, with multi-band support, GNSS, and broad IoT compatibility in a compact form.

US$50.00 Tax excluded

Be sure to check availability date

US/Canada
We only offer IC Certified products. For international products, contact us.

Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

Description

The Quectel EG25-GL Mini PCIe LTE Category 4 module offers high-speed connectivity with 150Mbps downlink and 50Mbps uplink rates.

This versatile module, compliant with 3GPP Release 11, supports multiple LTE bands and is backward compatible with EDGE and GSM/GPRS networks.

It features GNSS support for accurate positioning, a wide range of internet protocols, and interfaces for easy integration into IoT applications like industrial routers, PDAs, rugged tablets, and digital signage.

Operating within -35°C to +75°C, it ensures reliable performance in varied environments.

Data sheet

Product code: EG25-GL
Dimensions: 30.0 × 51.0 × 4.9
LTE Category: 4
LTE FDD bands: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
LTE TDD bands: B34/38/39/40/41
Operating Temperature: -40C to +65C
Antenna header count: 2
Weight: 9.8 (EG25-G Mini PCIe)
Power Rating: 3.3 V
Certification: SRRC/NAL/CCC/GCF/CE/FCC/PTCRB/IC/Anatel/IFETEL/KC/NCC/JATE/TELEC/RCM/NBTC/ICASA/IMDA
LTE data rate (Mbps): LTE-FDD: Max. 150 (DL)/Max. 50 (UL) * LTE-TDD: Max. 130 (DL)/Max. 30 (UL)
DC-HSPA+ data rate (Mbps): Max. 42 (DL)/Max. 5.76 (UL
WCDMA data rate (Kbps): Max. 384 (DL)/Max. 384 (UL)
EDGE data rate (Kbps): Max. 296 (DL)/Max. 236.8 (UL)
GPRS data rate (Kbps): Max. 107 (DL)/Max. 85.6 (UL)
Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS*/FTPS*/SMTPS/SSL/FILE
(U)SIM: 1.8 V/3.0 V
UART: × 1 (EG25-G Mini PCIe)
Antenna: Pads for Primary, Rx-diversity, and GNSS
