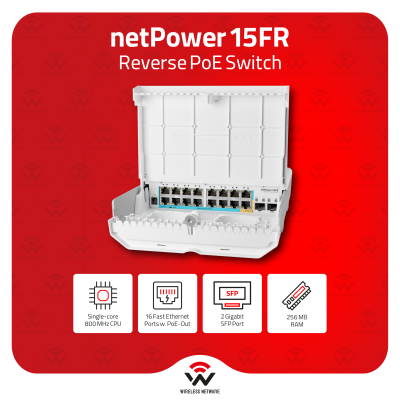

MikroTik netPower 15FR Outdoor Reverse PoE Switch
The MikroTik netPower 15FR (CRS318-1Fi-15Fr-2S-OUT) is a compact outdoor reverse PoE switch for MikroTik's GPEN concept — 98DX224S dual-core ARM 32-bit at 800 MHz, 256 MB RAM, 16 MB flash, RouterOS v7 License 5 or SwitchOS, 15× 10/100 reverse PoE-in (18–57V passive) + 1× 10/100 (Ether15, passive PoE-out) + 1× 10/100 fiber uplink (Fi) + 2× SFP, 3.6 Gbps non-blocking throughput, 7.2 Gbps switching capacity, 5.4 Mpps forwarding rate, 16 DC inputs (DC jack + passive PoE-in 18–57V, recommended 36–57V), 29W max / 10W without attachments, passive cooling, IP54, 304 × 212 × 71 mm, -40°C to +70°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes K-66 fastening set, 2× hose clamps, DC to terminal block adapter. Power supply NOT included.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik netPower 15FR is an outdoor reverse PoE switch built for MikroTik's GPEN concept — a low-cost ISP last-mile Ethernet alternative to GPON, delivering fibre-speed connectivity to individual apartments without GPON base stations or optical splitters.
**15× reverse PoE-in — the switch draws power from clients**
15 of the 16 Fast Ethernet ports are reverse PoE inputs — the switch draws its operating power directly from connected client devices over Ethernet, eliminating the need to run a separate power cable to the switch location. A single powered client is sufficient to power the unit. Ether15 provides passive PoE-out (same voltage as applied to the unit) to power a downstream PoE-capable device.
**1× fiber uplink port (Fi) — direct fiber termination**
The dedicated fiber input port (Fi) accepts a direct fiber connection — no SFP module required for the fiber uplink. Two additional SFP ports provide flexible fiber or copper uplink options.
**3.6 Gbps non-blocking throughput**
98DX224S dual-core ARM 32-bit at 800 MHz — 3.6 Gbps non-blocking throughput, 7.2 Gbps switching capacity, 5.4 Mpps forwarding rate. Managed via RouterOS v7 License 5 or SwitchOS — dual boot, both preinstalled and licensed. Free software updates for the life of the product or minimum 5 years from purchase.
**IP54 outdoor enclosure — attics, elevator shafts, poles**
IP54 rated — dust-protected and splash-resistant. K-66 fastening set, 2× hose clamps, and DC to terminal block adapter included. 16 DC inputs (DC jack + passive PoE-in) accept 18–57V (recommended 36–57V). Power supply NOT included — must be purchased separately.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC. Wired switch, no wireless transmitter — no ISED wireless type approval required.
- Product code
- CRS318-1Fi-15Fr-2S-OUT
- Operating System
- SwOS / RouterOS (Dual boot)
- Size of RAM
- 256 MB
- Storage size
- 16MB
- Storage type
- FLASH
- Number of DC inputs
- 1
- Max Power consumption
- 29 W
- PoE in
- Ports 1 - 14 and 16
- PoE out
- On Ether15
- 10/100 Ethernet ports
- 16
- Dimensions
- 304 x 212 x 71 mm
- AC input range
- 18 - 57 V (DC jack); 36 - 57 V (PoE-in)
- SFP ports
- 2
- Operating Temperature
- -40°C to +70°C tested
- chipset
- Switch chip model, 98DX224S
