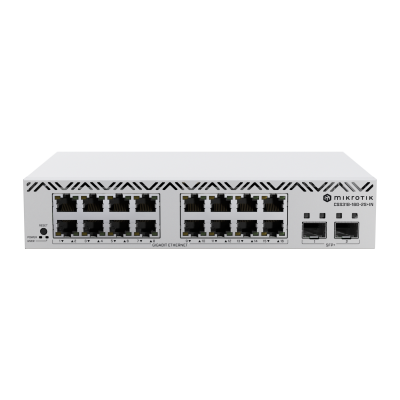

MikroTik CSS318-16G-2S+IN 16G+2SFP+ SwOS Switch
The MikroTik CSS318-16G-2S+IN is a compact, passively cooled managed switch featuring 16 Gigabit Ethernet ports and 2 SFP+ 10G uplink ports, running MikroTik's lightweight SwOS operating system. Housed in a 10-inch form factor chassis that also fits 19-inch racks, it is ideal for deployments where 24 ports are too many and 8 ports simply are not enough. With browser-based configuration, broad SwOS feature support, and very low power consumption, it offers a practical and scalable solution for small to medium network environments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CSS318-16G-2S+IN is a 1U managed switch built around the 98DX2518 switch chip, delivering 16 x 10/100/1000 Gigabit Ethernet ports and 2 x SFP+ 10G uplink ports in a compact 10-inch form factor. The chassis is also compatible with 19-inch racks (with the included rack ears), making it a versatile fit for a variety of installation environments — from small server rooms to network closets.
Management is handled through MikroTik's SwOS, a lightweight web browser-based operating system that requires no additional software installation. SwOS provides a broad set of Layer 2 management features including port-to-port forwarding, broadcast storm control, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation, and adjustment of MAC and IP header fields — all accessible through a straightforward web interface.
The switch is powered via AC mains (100–240 V, 50–60 Hz) and draws just 10 W without attachments and up to 13 W under full load, making it highly energy efficient. Passive cooling means silent, fanless operation — an advantage in office and noise-sensitive environments. CPU temperature monitoring is included for hardware health awareness.
The operating system is pre-installed and licensed — no separate purchase is required. The device ships with an IEC power cord, a set of four screws, and CSS rack ears for rack mounting.
Key Specifications at a Glance
- Product Code: CSS318-16G-2S+IN
- Switch Chip: 98DX2518
- Operating System: SwOS
- Storage: 16 MB FLASH
- Gigabit Ethernet Ports: 16x 10/100/1000
- SFP+ Ports: 2x (10G)
- AC Input: 100–240 V, 50–60 Hz
- Max Power Consumption: 13 W (10 W without attachments)
- Cooling: Passive (fanless)
- CPU Temperature Monitor: Yes
- Form Factor: 10-inch (also fits 19-inch racks)
- Tested Ambient Temperature: -40°C to 70°C
- MTBF: Approximately 200,000 hours at 25°C
- Certifications: CE, EAC, RoHS
- SwOS Features: Port-to-port forwarding, broadcast storm control, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation, MAC and IP header field adjustment
- Included: IEC cord, screw set (4), CSS rack ears
- Product code
- CSS318-16G-2S+IN
- Switch chip model
- 98DX2518
- Operating System
- SwOS (Min. version 2.17)
- Max Power consumption
- 13 W
13W - Max power consumption without attachments
- 10 W
- Dimensions
- 218 x 157 x 44 mm
- Number of AC inputs
- 1
- AC input range
- 100-240 V
- Operating Temperature
- -40°C to +70°C
- Current
- 0.197 A
- Number of 10G SFP+ ports
- 2
