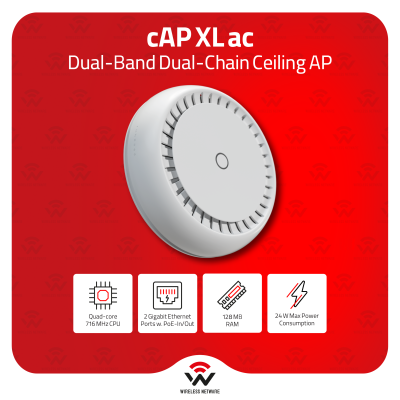

MikroTik cAP XL ac Dual-Band Ceiling AP AC1200 PoE
The MikroTik cAP XL ac (RBcAPGi-5acD2nD-XL) is a dual-band ceiling-mount 802.11ac access point — Qualcomm IPQ-4018 quad-core ARM 32bit at 488–896 MHz, 128 MB RAM, 16 MB FLASH, RouterOS v7 License 4, AC1200 (300 Mbps 2.4 GHz 802.11b/g/n + 867 Mbps 5 GHz 802.11a/n/ac), 2× 2 dual-chain, 6 dBi at 2.4 GHz + 5.5 dBi at 5 GHz, built-in reflector, 360° coverage, 2× GbE (PoE-in Ether1 802.3af/at 18–57V, passive PoE-out Ether2 up to 57V 500 mA), passive cooling, mode button, 191 × 42 mm, -40°C to +70°C, MTBF ~100,000 hours at 25°C. CE, FCC, IC, EAC, RoHS. USD 99.00.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik cAP XL ac is a ceiling-mount dual-band 802.11ac access point at USD 99.00 — MikroTik's own description: "the ceiling AP on steroids." The XL variant adds a larger high-gain antenna and a built-in reflector versus the standard cAP, increasing covered area by up to 100%.
**Built-in reflector + high-gain antenna — 100% larger coverage area**
The cAP XL ac's larger antenna and built-in reflector direct signal downward in a 360° pattern from the ceiling — eliminating the signal absorption problems caused by large TV sets, metal cubicle walls, and dense office furniture that floor-level or wall-mounted APs face. 6 dBi at 2.4 GHz and 5.5 dBi at 5 GHz with dual-chain (2× 2) radios on both bands.
**AC1200 dual-band — 300 Mbps + 867 Mbps**
802.11b/g/n on 2.4 GHz (300 Mbps max) and 802.11a/n/ac on 5 GHz (867 Mbps max) — AC1200 aggregate. Supports repeater mode for wireless mesh extension without additional hardware.
**Dual PoE — in on Ether1, out on Ether2**
802.3af/at PoE-in on Ether1 (18–57V) powers the unit from any standard PoE switch. Passive PoE-out on Ether2 (up to 57V, 500 mA) powers a downstream IP camera, IoT sensor, or secondary AP without a separate PoE injector.
**Low-profile ceiling design — 191 × 42 mm**
Confirmed dimensions: 191 × 42 mm — roughly the footprint of a large smoke detector. Low-profile design minimises visual impact in offices, hotels, restaurants, and retail environments.
**IC certified — Canadian market ready**
CE, FCC, IC, EAC, RoHS — confirmed ISED certification for compliant commercial sale and deployment across Canada.
**5-year software support guarantee:** RouterOS v7 updates free for minimum 5 years from purchase.
- Product code
- RBcAPGi-5acD2nD-XL
- Architecture
- ARM 32bit
- CPU
- IPQ-4018
- CPU core count
- 4
- CPU nominal frequency
- 488-896 (auto) MHz
- Switch chip model
- IPQ-4018
- Operating System
- RouterOS
- Size of RAM
- 128 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- MTBF
- Approximately 100'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 24W
- Max power consumption without attachments
- 11W
- Cooling type
- Passive
- PoE in
- 802.3af/at
- PoE in input Voltage
- 18-57 V
- PoE out
- Ether2, Passive PoE up to 57V
- Max out per port output - input (less than 30 V)
- 500 mA
- Max out per port output (input more than 30 V)
- 330 mA
- 10/100/1000 Ethernet ports
- 2
- Dimensions
- 191 x 42 mm
- Wireless 2.4 GHz Max data rate
- 300 Mbit/s
- Wireless 2.4 GHz number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n
- Antenna gain dBi for 2.4 GHz
- 6
- Wireless 2.4 GHz chip model
- IPQ-4018
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 5.5
- Wireless 5 GHz chip model
- IPQ-4018
- Wireless 5 GHz Max data rate
- 867 Mbit/s
- Wireless 2.4 GHz generation
- Wi-Fi 4
- Wireless 5 GHz generation
- Wi-Fi 5
- Certification
- CE, FCC, IC, EAC, ROHS
- Number of 1G Ethernet ports with PoE-out
- 1
