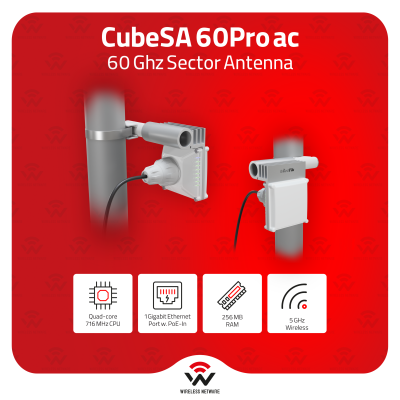

MikroTik CubeSA 60Pro ac 60GHz Sector AP PtMP 800m
The MikroTik CubeSA 60Pro ac (CubeG-5ac60ay-SA) is a 60 GHz 802.11ay sector access point for point-to-multipoint deployments — connects multiple Cube 60Pro or nRAY clients simultaneously, 600m range in PtMP mode (up to 800m with nRAY), automatic 5 GHz 802.11a/n/ac failover (433 Mbps, 11.5 dBi), Qualcomm IPQ-4019 quad-core ARM 32bit at 448–896 MHz, 256 MB RAM, 64 MB FLASH, RouterOS v7 License 4, 1× GbE PoE-in (802.3af/at, 18–48V), GPS, passive cooling, IP66, -40°C to +70°C, MTBF ~200,000 hours at 25°C. CE, FCC, IC, EAC, RoHS. Includes cube mount bracket, 24V 0.8A adapter, hose clamp, GbE PoE injector. USD 199.00.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CubeSA 60Pro ac is the sector access point counterpart to the Wireless Wire Cube Pro — where the Cube Pro kit creates one point-to-point 60 GHz link, the CubeSA 60Pro ac serves as the hub for multiple simultaneous 60 GHz client connections at USD 199.00 per unit.
**Point-to-multipoint 60 GHz — events, sites, temporary deployments**
600m range in PtMP mode, extendable to 800m with MikroTik nRAY client devices. MikroTik's primary use cases: live shows, festivals, workshops, construction sites, pop-up vaccination clinics — any temporary or permanent deployment where running cable to multiple locations is impractical. One CubeSA 60Pro ac hub serves multiple locations simultaneously without individual cable runs to each.
**Automatic 5 GHz failover — same architecture as the Cube Pro**
Identical failover mechanism to the Wireless Wire Cube Pro — automatic switch to 5 GHz 802.11a/n/ac (433 Mbps, 11.5 dBi directional antenna) during 60 GHz rain fade or obstruction, automatic return to 60 GHz when conditions clear.
**IP66 + metal base enclosure**
IP66 rating (versus IP55 on the Wireless Wire Cube Pro) — fully dust-tight and protected against powerful water jets. Metal base enclosure for improved mounting stability and passive thermal management.
**IC certified — Canadian market ready**
CE, FCC, IC, EAC, RoHS — confirmed IC (ISED) certification for compliant commercial sale and deployment across Canada.
**5-year software support guarantee:** RouterOS updates free for life of product or minimum 5 years from date of purchase.
- Product code
- CubeG-5ac60ay-SA
- Architecture
- ARM 32bit
- CPU
- IPQ-4019
- CPU core count
- 4
- CPU nominal frequency
- 716MHz
- RouterOS License
- RouterOS L4
- Size of RAM
- 256 MB
- Storage size
- 64 MB
- Storage type
- FLASH
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 13 W
- Cooling type
- Passive
- PoE in
- 802.3af/at
- PoE in input Voltage
- 18-48 V
- GNSS standards
- GPS
- 10/100/1000 Ethernet ports
- 1
- Dimensions
- 115 x 211 x 90 mm
- Wireless 5 GHz number of chains
- 1
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 802.11a/n/ac
- Wireless 5 GHz chip model
- IPQ4019
- Wireless 5 GHz Max data rate
- 433 Mbit/s
- Wireless 5 GHz generation
- WIFI 5
- Certification
- CE, FCC, IC, EAC, ROHS
- IP
- IP54
