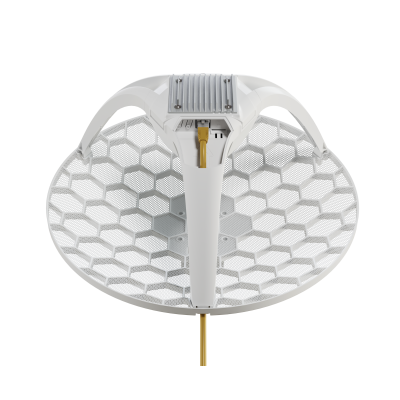

MikroTik LHGG LTE7 Outdoor LTE Cat7 17dBi Grid Kit
The MikroTik LHGG LTE7 Kit (LHGGR&R11e-LTE7) is a rugged outdoor LTE Cat7 router with a built-in 17 dBi directional grid antenna for last-mile internet in remote and rural locations. It delivers up to 300 Mbps downlink and 100 Mbps uplink — double the upload speed of the LTE6 predecessor — with expanded band support including B28 and B32. IP54 rated, pole or mast mountable, and operating from -40°C to +70°C, it ships with RouterOS v7 preinstalled.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik LHGG LTE7 Kit (LHGGR&R11e-LTE7) is a complete outdoor LTE solution for reliable last-mile internet in areas where wired infrastructure is unavailable. The integrated 17 dBi high-gain directional grid antenna and LTE Cat7 modem deliver a strong, stable signal even where mobile phones cannot connect.
Key features:
- LTE Cat7 — 300 Mbps downlink, 100 Mbps uplink with 2×2 MIMO DL
- LTE FDD bands: B1, B3, B5, B7, B8, B20, B28 (700 MHz)
- LTE TDD bands: B38, B40, B41
- 3G R8 fallback — 42.2 Mbps downlink, 5.76 Mbps uplink
- 17 dBi grid antenna — lightweight, wind-resistant, high-gain
- 1× Gigabit Ethernet with PoE-In (802.3af/at, 12–57V), max 8W
- Dual-core ARM 64-bit CPU at 800 MHz, 256 MB RAM, 16 MB Flash
- Passive cooling with large heat sink for continuous load stability
- IP54 rated, -40°C to +70°C, MTBF ~200,000 hours at 25°C
- RouterOS v7, License Level 3 — free updates for life (minimum 5 years)
- Pole/mast mountable — hose clamps ×2 and K-LHG screw kit included
- Certified CE, EAC, RoHS
Important LTE Compatibility Notice:
LTE7 products may support different cellular bands than LTE6 and LTE Cat 4 devices. Before purchasing, please confirm with your carrier or service provider that the supported LTE bands are compatible with their network.
If you would like to test the device, our return period is 7 days. The product must be returned in good condition with all original parts, accessories, and retail packaging. Incomplete or damaged returns may be subject to a restocking fee of up to 30%.
In the box: 24V 0.8A power adapter, Gigabit PoE injector, hose clamp ×2, K-LHG screw kit.
Ideal for: rural last-mile internet, video surveillance uplinks, VPN endpoints, remote work, and multi-user off-grid deployments.
- Product code
- LHGGR&R11e-LTE7
- CPU architecture
- ARM 64bit
- CPU
- Dual-core 88F3720 800 MHz
- Operating System
- RouterOS v7, License level 3
- Size of RAM
- 256 MB
- Storage size
- 16 MB Flash
- Max Power consumption
- 8 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- 3G Category
- R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 8 (900 MHz)
- Dimensions
- 391 x 391 x 227 mm
- MiniPCI-e slots
- 1
- LTE Category
- 7 (DL: 300 Mbps; UL: 100 Mbps)
- LTE FDD bands
- 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Operating Temperature
- -40°C to +70°C
- RAM type
- DDR3L
- Number of 1G Ethernet ports
- 1
- LTE modem
- R11e-LTE7
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 0.8 A
- DC input
- PoE-In
